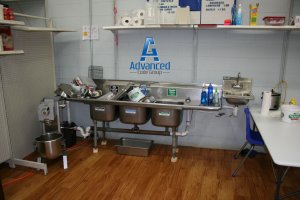

3 Compartment Sink Plumbing Code

Written By Bathroom Tuesday, 19 September 2017 Add Comment Edit

The floor drain must be installed on the individual drainage branch of the sink that is being protected. I have a three compartment sink that will be used for washing dishes.

Https Www Concordnh Gov Documentcenter View 1808 Plumbing Code For Commercial Kitchens 1 31 13

Fortunately its fairly easy to repair sinks like these once you know how their pipes are laid out.

3 compartment sink plumbing code. 1 service sink and 1 3-Compartment Sink as required by 77 Ill. One trap shall be permitted to serve a set of not more than three single compartment sinks or laundry tubs of the same depth or three lavatories immediately adjacent to each other and in the same room where the waste outlets are not more than 30 inches 762 mm apart and the trap is centrally located where three compartments are installed. 03112011 Sinks used for the washing rinsing or sanitizing of utensils dishes pots pans or serviceware used in the preparation serving or eating of food shall discharge indirectly through an air gap or an air break or directly connect to the drainage system.

- pot sinks scullery sinks commercial kitchen sinks beverage service sinks dishwashing sinks and silverware sinks must be directly connected to the drainage system. Minimum 4 diameter funnel. At least one warewashing three-compartment sink is required in food preparation and processing areas for retail food establishments.

Chapter 3 General Regulations Chapter 4 Fixtures Faucets and Fixture Fittings. International Plumbing Code 2015 IPC 2015 Chapter 1 Scope and Administration Chapter 2 Definitions 201 General 202 General Definitions. 05032012 Back to your 3 comp sinkcheck to see if your plumbing code andor health dept requires you to have a solids interceptor BEFORE the grease interceptor if your 3 comp sink is calling for a commercial disposal.

A building having plumbing fixtures installed and intended for human habitation occupancy or use on premises abutting on a street alley or easement in which there is a public sewer shall have a separate connection with the sewer. Plumbing a three-compartment sink can be a bit more complicated than working with a normal sink. 1 service sink per floor on which restrooms are located.

If a true economic hardship exists or if the modifications described are too difficult to implement due to space constraints conflicts with the plumbing code or building ownership direct plumbing to the sewer system may be approved by the Department provided. Cal Code 1142593 a b Insect control devices. The second pipe from another sink to the right is illustrating what the pipe would look like if it terminated in the waste receptor with an AIR GAP.

A fixture combining one sink and laundry tray or a two- or three-compartment sink or laundry tray in one unit. The IPC seems to indicate you can discharge a 3 compartment sink anyway the contractor chooses. A grease interceptor intended to serve as a fixture trap in accordance with the manufacturers installation instructions shall be permitted to serve as the trap for a single fixture or a combination sink of not more than three compartments where the vertical distance from the fixture outlet to the inlet of the interceptor does not exceed 30 inches 762 mm and the developed length of the.

In my area all 3 compartment sinks in restaurants must have a 2. COMBINATION WASTE AND VENT SYSTEM. Food Preparation Areas.

A fixture combining one sink and laundry tray or a two- or three-compartment sink or laundry tray in one unit. Although the code says that I can tie them together using a single trap as long as the. Air Break To Sewer.

A floor drain without backwater valve must be placed adjacent to the fixture. Their thinking is the majority of the grease comes from 3 bay sinks and dish washers. If the prep sink is located closer than two feet from a hand sink or 3-compartment sink a six-inch splash guard is required.

A hub drain shall be in the form of a hub or a pipe extending not less than 1 inch 25 mm above a water-impervious floor. 23112020 If you have a three-compartment sink at home or at your place of business you may need to repair it at some point. - tell-tale floor drain ttfd - - floor.

25032012 I am going by the Massachuetts plumbing code. 3013Connections to drainage system. Hand wash signs must be present at each hand wash sink.

Drain Line from Sink. Today AW-3 NIKXFIX WILL BE PLUMBING UP A 3 Compartment Sink Drain waste line and installing a new drain assembly dump valve. Three Compartment sink Food Preparation Sink Janitorial Sink.

Standpipes shall extend not less than 18 inches 457 mm but not greater than 42 inches 1066 mm above the trap weir. I dont make the code I only install according to code. International Plumbing Code 2015 IPC 2015 Chapter 1 Scope and Administration Chapter 1 General Requirements Chapter 2 Definitions 201 General 202 General Definitions.

Food Storage Rooms. Standpipes shall be individually trapped. Plumbing Code in Commercial Kitchens City of Concord Code Administration 225-8580 Dan Clark Plumbing Inspector Tedd Evans Chief Building Inspector Code References from the 2009 edition of the International Plumbing Code.

Minimum size of a food preparation sink is 18 x18 x12 inches with either a single integral drain board 18 x18 inches or an adjacent table 18 x18 inches or larger. Plumbing schedule e Electrical schedule f Detailed exhaust ventilation and make-up systems indicate types of hoods etc. Trap for each compartment and each trap must be vented.

Plumbing fixtures drains appurtenances and appliances used to receive or discharge liquid wastes or sewage shall be directly connected to the sanitary drainage system of the building or premises in accordance with the requirements of this code. The drains will connect together and tie into a. Warewashing sink compartments must be large enough to hold the largest piece of equipment or utensil.

Chapter 3 General Regulations Chapter 4 Fixtures Faucets and Fixture Fittings.

Iapmo Uniform Codes Spotlight

Compartment Sinks Compared Choosing The Best Compartment Sink

Wecome To The Training Center Website

Finishing Touches August 2006 The Place Is Almost Finished These Are Just A Random Selection Of Last Minute Jobs The Code Says We Must Have An Exhaust Hood With Fire Suppression System Here S The Guts Of The Fire System We Recycled A Leftover Shelf To

Https Www Tchd Org Documentcenter View 4069

Dishwasher Photo And Guides Commercial Dishwasher Waste Pipe

Iapmo Uniform Codes Spotlight

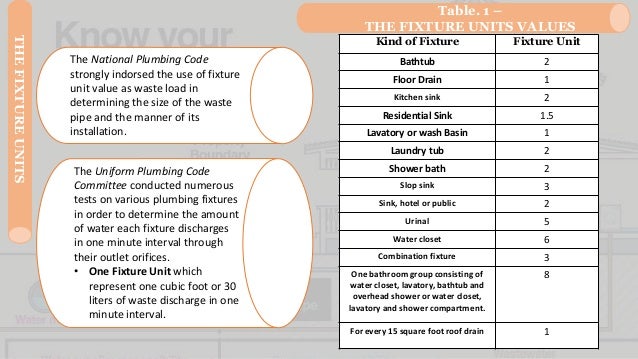

Plumbing Presentation
